4-SIDE MOULDer SOLUTIONS
WHAT PROFILE ACCURACY MEANS.
FOUR SIDES, ONE PASS
Four cutterheads plane and profile every face of the board in a single pass, from rough stock to finished moulding.
WORKING DIMENSIONS
Designed for demanding production needs
RANGE
ONE MACHINE, MANY PROFILES
Simple tooling changes let small and mid-size workshops cover a wide product range without a large investment.

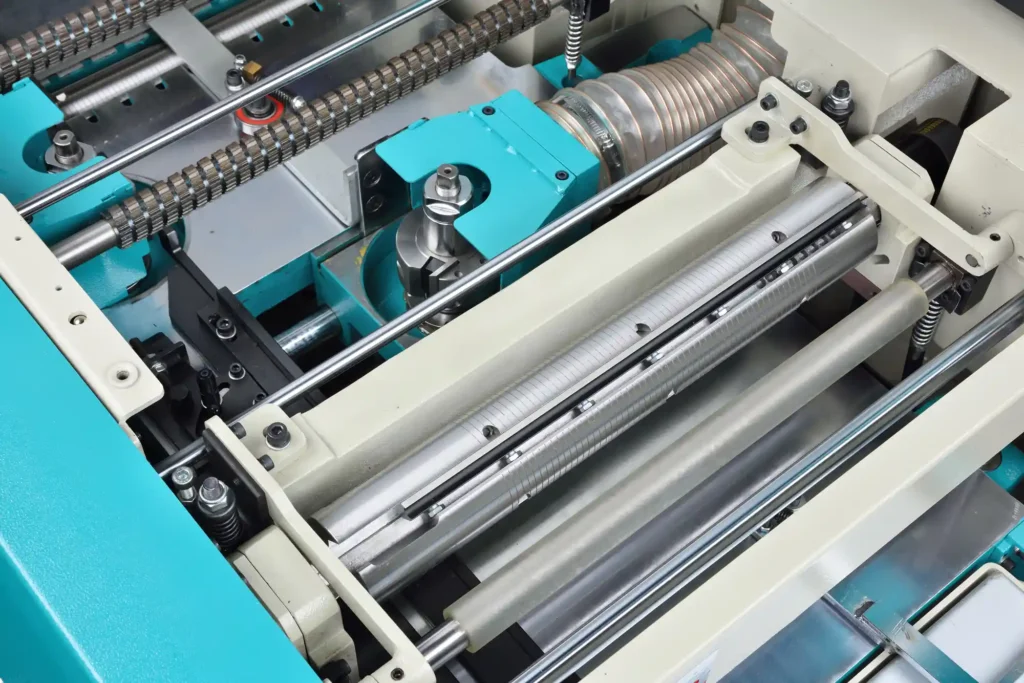

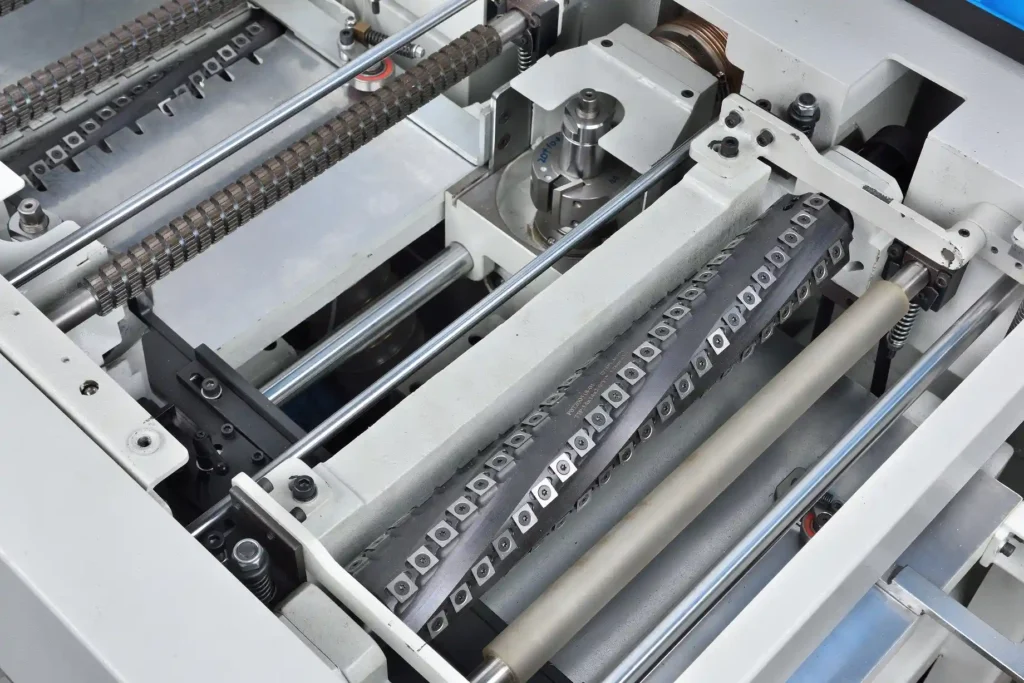

FOUR CUTTERHEADS
Bottom head: planes the reference face. Right head: straightens the edge against the fence. Left head: sets the final width and can cut an edge profile. Top head: sets the final thickness and can cut a face profile.
SYNERGY
PLANING + PROFILING
Planing and profiling happen in the same pass, so every profile is cut on a flat, square and accurately sized piece. No intermediate handling, no misalignment between operations.
Discover the Ultimate SETUP
TABLE ELEVATION
MANUAL ELEVATION
Lever and worm gear with mechanical meter for simple, robust and effortless moves
POWERED ELEVATION
Motor-driven table with top & bottom limit switches for quick settings & frequent size changes
precision engineerING
Investing in a 4-side moulder with a heavy cast iron frame and accurate spindles is crucial for clean profiles and long tool life.

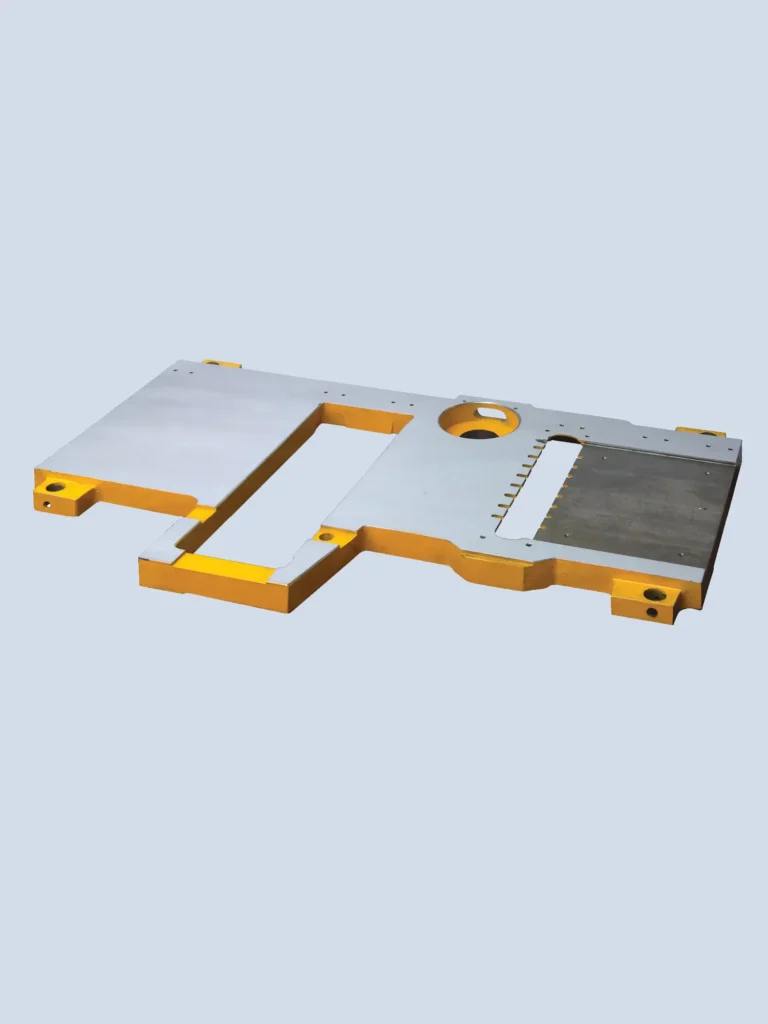

DURABLE TABLE
The cast iron table is rib-reinforced against deformation, hard-chrome plated and precision ground for maximum wear resistance.
LONG INFEED FENCE
The 1250mm infeed fence is extruded from aluminium alloy and anodized for durability, guiding every board straight into the first cutterhead.
At The INFEED
3~16M/MIN VARIABLE FEEDING SPEED
5HP BOTTOM / 7.5HP TOP SPINDLES
2x 4.1HP RIGHT & LEFT SPINDLES

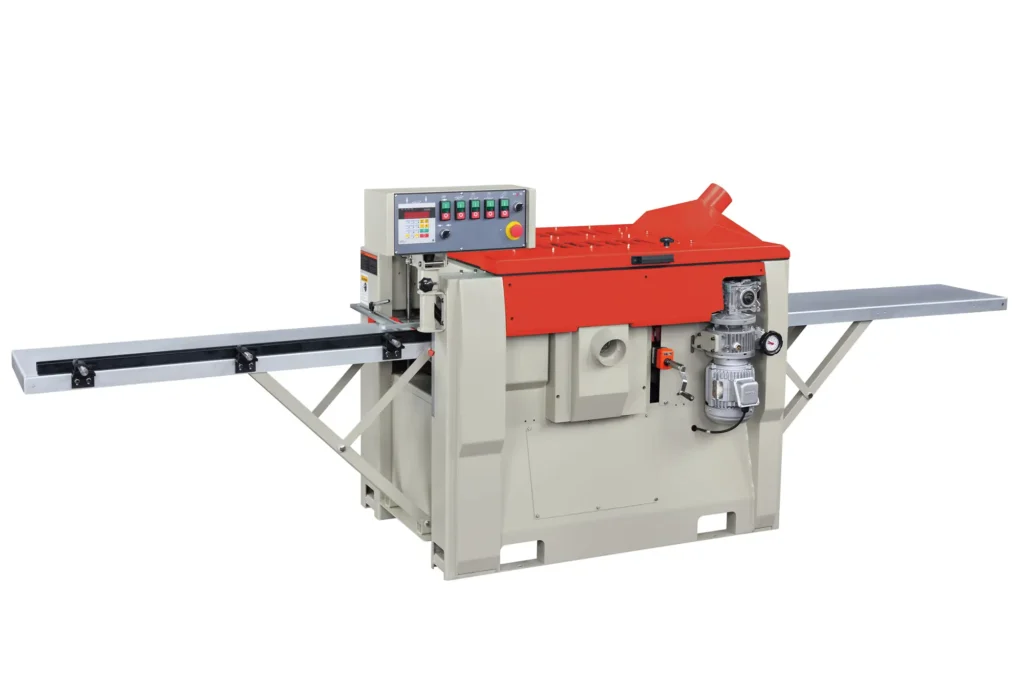

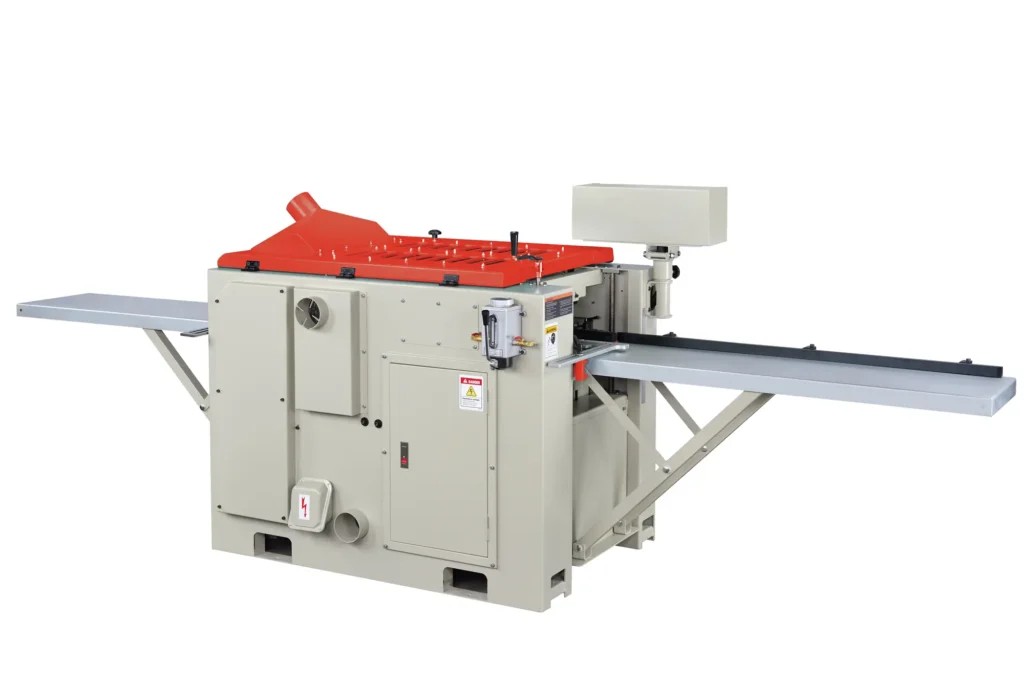

INFEED & OUTFEED TABLE EXTENSION
Control interface
One central panel with each cutterhead switched individually, so the operator sets up every profile quickly and safely.
User Friendly interface
TABLE HEIGHT
Raise or lower the whole table up to 230mm, with a meter for accurate reading of the adjustment.
FEED SPEED
Turn the speed knob to match the feeding speed to the wood species and profile depth.
QUICK TOOL CHANGE
Swap profile knives quickly to move from one product to the next.
CONTACT US
Send us the profiles you need and we will match the right moulder and tooling.
