FINGER JOINTING SOLUTIONS
WHAT JOINT STRENGTH MEANS.
SHORT PIECES, ENDLESS LENGTHS
A finger shaper and a finger assembler work together to turn short, defect-free pieces into long, strong lumber, giving full value to your residual wood.
WORKING DIMENSIONS
Designed for demanding production needs
RANGE
DIMENSIONS, CAPACITY & CYCLE
Choosing a finger joint line starts with three numbers. Get them right and the whole line runs at full speed.

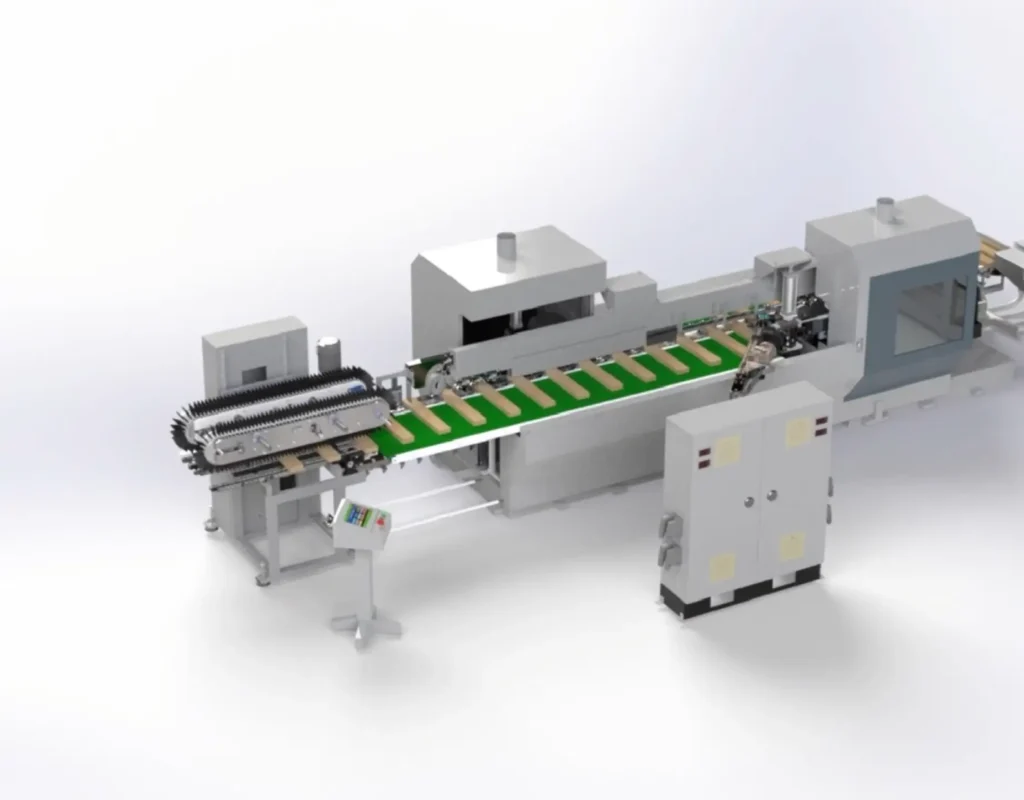

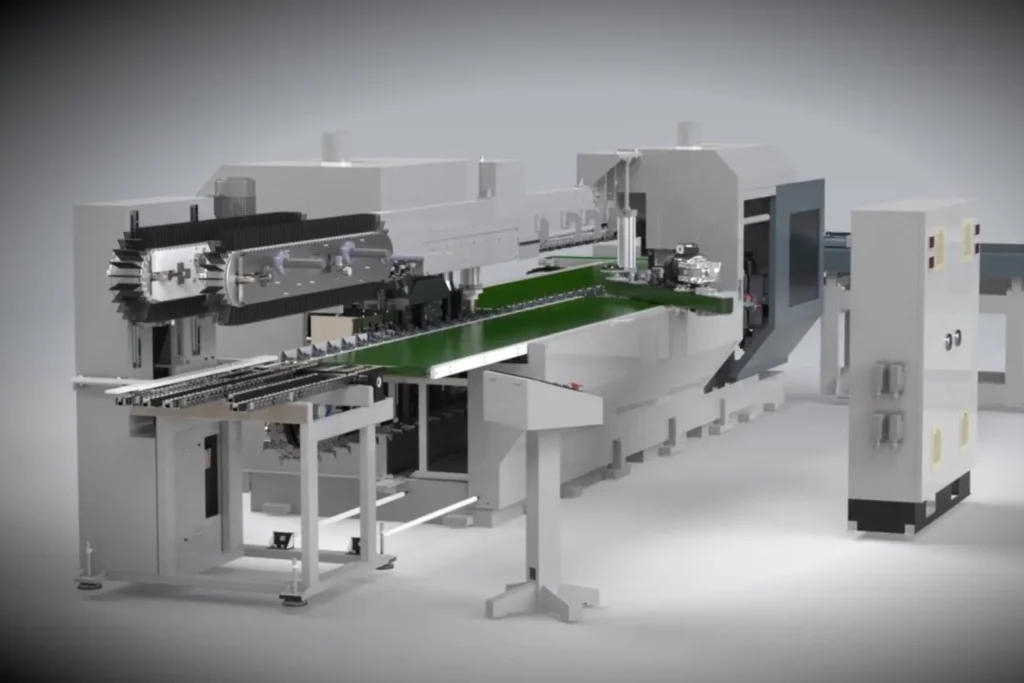

FINGER SHAPERS

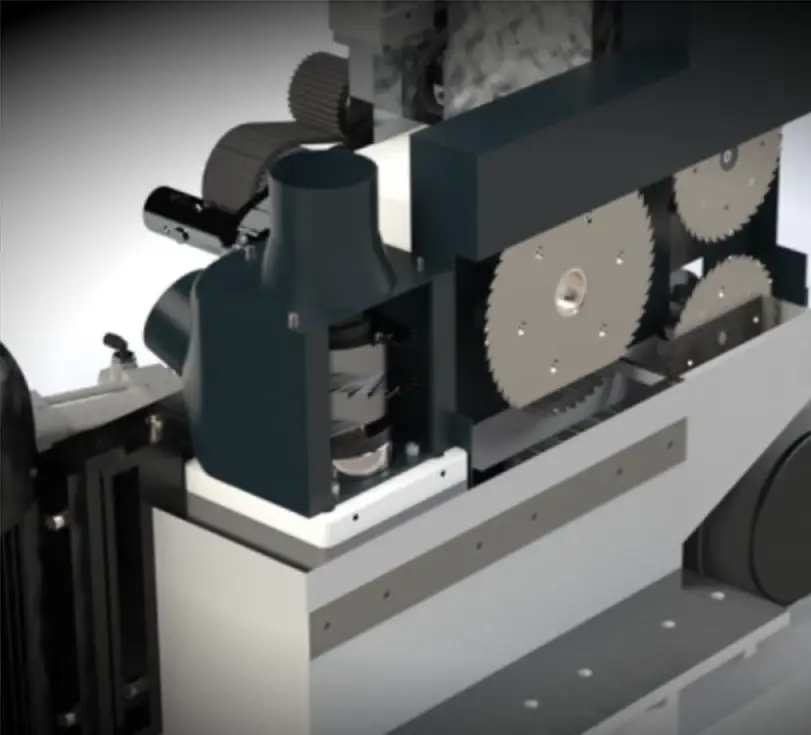

Short blocks are fed in batches. Trim saws square each end and scoring saws prevent tear-out, then the finger cutterhead mills the interlocking profile. The batch is turned or transferred and the second end is shaped the same way.
SYNERGY
SHAPER + ASSEMBLER
The shaper sets the speed of the line, the assembler sets the joint quality. After gluing, the assembler engages the pieces end to end, applies pressure to close the joints and cuts the continuous beam to length.
Discover the Ultimate SETUP
JOINT CONFIGURATION
VERTICAL FINGER JOINT
Fingers visible on the face of the board, for the highest strength in structural lamellas & beams
HORIZONTAL FINGER JOINT
Fingers visible on the edge of the board, for a clean face on furniture parts, panels & mouldings
precision engineerING
Investing in a finger joint line with servo drives and solid construction is crucial for tight, repeatable joints at high speed.

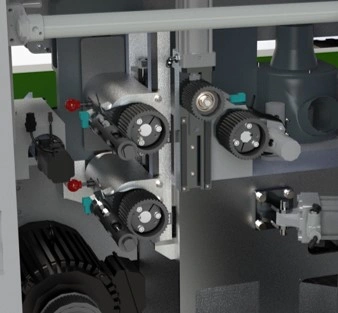

AUTOMATIC TOOLING CALIBRATION SYSTEM
The industry’s first electrical push rod technology fully automates tool calibration, with no manual adjustment between batches.
BLOCK POSITIONING & LENGTH READING SYSTEM
Automatically detects the length of each piece and positions the finger jointing block for a precise, consistent profile.
At The INFEED

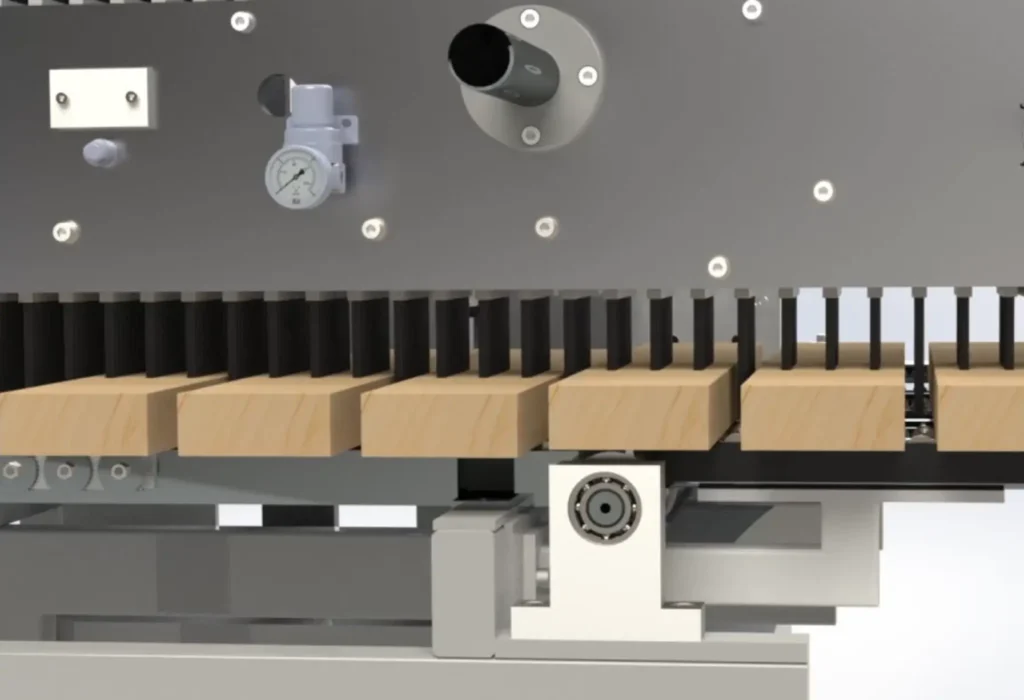

DOUBLE BRUSH WHEEL FEEDING TABLE
SERVO MOTOR INDEXING
TRIMMING & SCORING ON BOTH ENDS
120~200 PCS/MIN SHAPING SPEED
USER FRIENDLY INTERFACE
Simple, intuitive controls let the operator switch rip widths in seconds, without tools and without stopping the line.
User Friendly interface

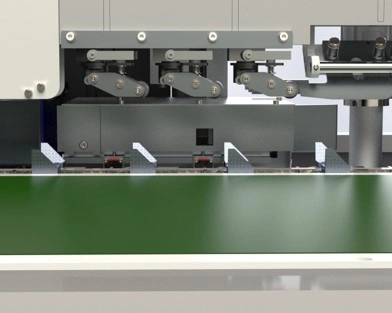

CUTTING SIZE
Calibrate and optimize cutting dimensions automatically before material cutting, for maximum material usage.
TARGET LENGTH
Key in your finished lengths and the assembler cuts the continuous beam accordingly.
LIVE OUTPUT
Follow pieces per minute and press cycles on screen.
CONTACT US
Send us your piece dimensions and target output per shift, and we will size the shaper and assembler together.
